amd22
csendes tag
mellesleg kiváncsi lennék,hogy ha beletennénk egy régebbi athlon x2öt vagy egy sima phenomot mint az enyémet is akkor mit lehetne belölük kihozni mert az én phenomomból még nem jött ki több 2900mhztöl.pedig már 2 lapban is járt.(asus crosshair,asus m3a78)
lehet hogy semmit? vagy talán többet.? -
amd22
csendes tag
CPU AMD Socket AM3 ;Phenom™II /Athlon™II /Sempron™ 100 Series Processors
AMD 140W CPU Support
AMD Cool 'n' Quiet™ Technology
Supports 45nm CPU
Chipset AMD 890FX/SB850System Bus Up to 5200 MT/s ; HyperTransport™ 3.0
Memory 4 x DIMM, Max. 16 GB, DDR3 2000(O.C.)/1600/1333/1066 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*Due to CPU spec., AMD 100 and 200 series CPUs support up to DDR3 1066Mhz. With ASUS design, this motherboard can support up to DDR3 1333MHz.
**Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
***Refer to www.asus.com for the memory QVL (Qualified Vendors Lists).
Expansion Slots 2 x PCIe 2.0 x16 support ATI CrossFireX™ technology(@dual x16 speed)
1 x PCIe 2.0 x4
1 x PCIe 2.0 x1
2 x PCIStorage SB850 Chipset
6 xSATA 6.0 Gb/s ports Support RAID 0,1,5,10
JMicron® JMB361 PATA and SATA controller
1 xUltra DMA 133/100 for up to 2 PATA devices
1 xPower eSATA 3.0 Gb/s port
LAN Realtek® 8111E Gigabit LAN controller featuring AI NET2
Audio ALC 892 8-Channel High Definition Audio CODEC
- Supports 192kHz/ 24bit BD Lossless Sound
- DTS Surround Sensation UltraPC
- Supports Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking
- Optical S/PDIF Out ports at back I/O
- ASUS Noise Filter
IEEE 1394 VIA® 6315N controller supports 2 x 1394a port(s) (1 at mid-board; 1 at back panel)
USB 12 x USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at back panel)
2 x USB 3.0/2.0 ports (2 ports at back panel)
ASUS Unique Features ASUS Xtreme Design
ASUS Hybrid Processor - TurboV EVO
- Turbo Unlocker, Auto Tuning, TurboV, CPU Level UP
ASUS Hybrid Switch
- Core Unlocker
- Turbo Key II
ASUS Hybrid OS -- Express Gate
ASUS Power Solutions
- 6+2 Phase Power Design
- ASUS EPU
ASUS Exclusive Features
- MemOK!
ASUS Quiet Thermal Solution
- ASUS Fanless Design: Heat pipe solution
- ASUS Fan Xpert
ASUS EZ DIY
- ASUS Q-DIMM
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Percision Twerker 3
- Multi-language BIOSOverclocking Features Precision Tweaker 3
- vCore: Adjustable CPU voltage at 0.003125V increment
- vDDNB: Adjustable CPU NB voltage at 0.003125V increment
- vCPU PLL: Adjustable CPU_PLL voltage at 0.00625V increment
- vHT bus: Adjustable PCH voltage at 0.00625V increment
- vDRAM Bus: Adjustable DRAM voltage at 0.00625V increment
- vChipset: Adjustable Chipset voltage at 0.00625V increment
SFS (Stepless Frequency Selection)
- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
- Internal Base Clock tuning from 100MHz up to 600MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)Back Panel I/O Ports 1 x S/PDIF Out (Optical)
1 x IEEE 1394a
1 x LAN(RJ45) port
8 -Channel Audio I/O
1 x PS/2 Keyboard port (Purple)
1 x PS/2 mouse port (Green)
1 x Clear CMOS button
1 x Power eSATA port
2 x USB 3.0/2.0 ports
6 x USB 2.0/1.1 ports
Internal I/O Connectors 3 x USB connectors support additional 6 USB ports
1 x IDE connector
1 x IEEE 1394a connector
1 x CPU Fan connector
6 x SATA 6Gb/s connectors
1 x Chassis Fan connector (4-pin)
1 x Chassis Fan connector (3-pin)
1 x Power Fan connector
1 x S/PDIF Out Header
1 x Core Unlocker Switch
1 x Turbo Key II Switch
1 x MemOK! Button
Front panel audio connector
1 x COM connector
1 x 24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
System PanelBIOS 16 Mb Flash ROM , SPI, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Accessories User's manual
1 x UltraDMA 133/100/66 cable
4 x Serial ATA 6.0Gb/s cables
1 x Q-Shield
2 in 1 Q-connector (USB, System panel; Retail version only)
Support Disc Drivers
Anti-virus software (OEM version)
ASUS Update
ASUS UtilitiesForm Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )CPU, Chipset and Graphics Features
AMD® AM3 Phenom™II /Athlon™II /Sempron™ 100 Series Processors
This motherboard supports AMD® AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process.CrossFireX Support
Flexible Multi-GPU solutions, Your Weapon of Choice!
ATI's CrossFireX™ boosts image quality along with rendering speed, eliminating the need to scale down screen resolution to get high quality images. CrossFireX™ allows higher antialiasing, anisotropic filtering, shading and texture settings. Adjust your display configurations, experiment with the 3D settings, and check the effects with a real-time 3D-rendered previews within ATI Catalyst™ Control Center.
AMD® 890FX
AMD® 890FX Chipset is designed to support up to 5200MT/s HyperTransport™ 3.0 (HT 3.0) interface speed and quad PCI Express™ 2.0 x16 graphics. It is optimized with AMD®’s latest AM3 and multi-core CPUs to provide excellent system performance and overclocking capabilities.PCIe 2.0 support
Double Speed; Double Bandwidth
This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.Next-gen Technology
True USB 3.0
Realize the True Future!! - TRUE USB 3.0 Support!
Experience ultra-fast data transfers at 4.8 Gb/s with USB 3.0–the latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10X faster and is also backward compatible with USB 2.0 components.
Serial ATA 6.0 Gb/s support
The AMD® SB850 Southbridge natively supports next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0 Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems.Memory Features
Dual-Channel DDR3 2000(O.C.)/1600/1333/1066 support
The motherboard supports DDR3 memory that features data transfer rates of 2000(O.C.)/1600/1333/1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.Hybrid Switch
Core Unlocker
Unleash True Core Performance Intelligently
ASUS Core Unlocker simplifies the activation of a latent AMD® CPU—with just a simply switch. Enjoy an instant performance boost by simply unlocking the extra cores, without performing complicated BIOS changes.Turbo Key II
Switch on the Potential, Turn up the Performance!
Enjoy superb performance by auto-tuning your processor to an extreme yet stable state. Simply activate a dedicated switch on the motherboard to unleash extra processing capabilities.Hybrid Processor
TurboV EVO
The Ultimate O.C. Processor
The ultimate O.C. processor satisfies every level of overclockers—from die-hard enthusiasts to beginners. Auto tuning intelligently pushes the system to the fastest clock speeds while maintaining stability. Turbo Key boosts performance with just one touch; while TurboV offers more options to advanced overclockers to achieve world O.C. record. Moreover, upgrade your CPU at no additional cost with CPU Level UP!Auto Tuning
Auto System Level Up
Auto Tuning is an intelligent tool that automates overclocking to achieve a total system level up. This tool also provides stability testing. Even O.C. beginners can achieve extreme yet stable overclocking results with Auto Tuning!Turbo Key
Touch-n-Boost!
ASUS Turbo Key allows you to turn the PC power button into a physical overclocking button. After the easy setup, Turbo Key can boost performances without interrupting ongoing work or games, simply through pressing the button.
Turbo Unlocker
Turbo Unlocker is the next evolution of an exclusive ASUS performance boost feature. All it takes is one click in the TurboV EVO interface and Turbo Unlocker automatically and dynamically adjusts each core frequency to speed up performance based on actual system load. Turbo Unlocker gets you in touch with more performance exactly when you need it.CPU Level UP
Ever wish that you could have a more expansive CPU? Upgrade your CPU at no additional cost with CPU Level UP! Simply pick the processor you wanted to OC to, and the motherboard will do the rest! See the new CPU speed and enjoy that performance instantly. Overclocking is never as easy as this.Hybrid OS
Express Gate
0 to Internet in Seconds!
Express Gate™ is an ASUS exclusive OS that provides you with quick access to the Internet and key applications before entering Windows®.ASUS Xtreme Phase
ASUS 6+2 Phase Power Design
Longer Life & Higher Efficiency!
Unleashes ultimate memory performances with independent power to core components, while providing fast transient response and stability for the CPU under heavy loading or overclocking modes.ASUS Exclusive Features
MemOK!
Any Memory is A-OK!
MemOK! quickly ensures memory boot compatibility. This remarkable memory rescue tool requires a mere push of a button to patch memory issues. MemOK! determines failsafe settings and dramatically improves your system boot success. Get your system up and running in no time!
EPU
System Level Energy Saving
The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power usage for critical PC components in real-time–helping save power and money!ASUS Quiet Thermal Solutions
Fanless Design - Heat pipe solution
The ASUS heat pipe features 0-dB thermal solution that offers users a noiseless PC environment. Not only the beautiful shape upgrades the visual enjoyment for motherboard users, but also the heat pipe design lowers the temperature of the chipset and power phase area through high efficient heat-exchange. Combined with usability and aesthetics, the ASUS heat pipe will give users an extremely silent and cooling experience with the elegant appearance!
Fan Xpert
Active Quiet & Cool
ASUS Fan Xpert intelligently allows users to adjust both the CPU and chassis fan speed according to different ambient temperature , which is caused by different climate conditions in different geographic regions and system loading.Built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment.ASUS EZ DIY
EZ Flash2
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash is a user-friendly BIOS update utility. Simply press the pre-defined hotkey to launch this tool and update BIOS from a floppy disk before entering the OS.O.C. Profile
Conveniently store or load multiple BIOS settings
Freely share and distribute favorite overclocking settings The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings.
CrashFree BIOS 3
Simply restore corrupted BIOS data from USB flash disk
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.ASUS Q-Connector
ASUS Q-Connector allows you to easily connect or disconnect the chassis front panel cables to the motherboard. This unique module eliminates the trouble of connecting the system panel cables one at a time and avoiding wrong cable connectionsIndustry Standard
8 Channel Audio Codec
Enjoy high-end sound system on your PC!
The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology.DTS
DTS Surround Sensation UltraPC
DTS Surround Sensation UltraPC delivers exceptional 5.1 surround experience through the most common PC audio setups - your existing stereo speakers or headphones. In addition to virtual surround, “Bass enhancement” provides stronger low frequency bass sound, and “Voice clarification” provides clear human dialogue even with loud background sound. With these technologies, you may experience a better home-theater audio with ease.
S/PDIF-out on Back I/O Port
This motherboard provides convenient connectivity to external home theater audio systems via optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.Noise Filter
Eliminate background noise while recording
This feature detects repetitive and stationary noises like computer fans, air conditioners, and other background noises then eliminates it in the incoming audio stream while recording.RoHS
GreenASUS
The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.Accessories

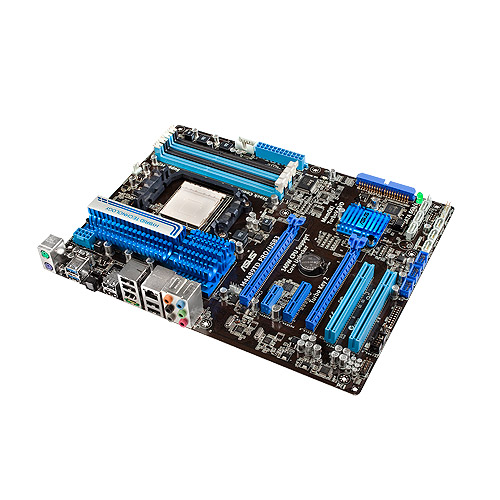

megjött az asus M4A89GTD PRO/USB3 kisöccse.
uj tapasztalatokat várom a bratyoról is.
üdv
